Unimac Dryer Belt Replacement
Why Your Unimac Dryer's Drum Stops Spinning
Every Unimac commercial dryer relies on a drive belt to transfer rotation from the motor to the drum. When that belt stretches, cracks, or breaks entirely, the drum stops tumbling and wet clothes stay damp no matter how long the cycle runs. In practice, this is one of the most common wear items in a front-load or top-load Unimac unit, and ignoring it usually leads to much costlier repairs down the road. Timely replacement keeps your machine running efficiently and protects both the motor and drum bearings from unnecessary strain.
Recognizing Early Signs of Belt Failure
Telltale Noises and Symptoms
A failing belt rarely announces itself quietly. Listen for these warning signs during normal operation:
- Squealing or chirping sounds – Often caused by a stretched belt slipping on the motor pulley
- Thumping or banging – Indicates a loose belt slapping against internal components
- Drum won't spin freely – Manual rotation feels stiff or inconsistent
- Extended drying times – Clothes remain damp despite full cycles
- Burning rubber smell – Friction from a slipping or glazed belt
When to Act Immediately
If you notice any of these symptoms, stop using the dryer and inspect the belt right away. Continuing to operate with a compromised belt risks damaging the motor, drum rollers, or idler pulley – turning a $20 fix into a multi-hundred dollar repair job. For more on this, see our guide on top 7 hair dryer under 50.
Tools, Parts, and Preparation Checklist
Essential Tools for Safe Service
Before starting, gather these items to ensure a smooth process:
| Tool | Purpose |
|---|---|
| Nut driver set (Phillips and flathead) | Removing access panels |
| Socket wrench set (10mm and 13mm sockets) | Drum and motor mounting bolts |
| Putty knife or prying tool | Releasing spring clips safely |
| Work gloves | Protecting hands from sharp metal edges |
| Flashlight or headlamp | Illuminating tight spaces inside cabinet |
| Torque wrench (optional) | Ensuring proper bolt tension |
Choosing the Right Replacement Belt
Always verify your exact model number before ordering. OEM belts offer guaranteed compatibility, while aftermarket options can save money but vary in quality. Key characteristics to look for:
- Material: Reinforced rubber compound with high heat resistance
- Profile: V-belt, serpentine, or round based on your Unimac model
- Length: Must match original specifications exactly
- Tensile cords: Look for polyester or fiberglass reinforcement
Unimac's official parts catalog remains the best source for confirming correct belt numbers tied directly to your serial number.
Step-by-Step Removal and Installation Process
Power Down and Gain Access
- Unplug the dryer completely – Never attempt this repair while connected to electricity
- Turn off gas supply (if applicable) – Gas dryers require additional safety precautions
- Remove the lint screen first – Provides easier access to internal components
- Detach the top panel – Usually secured by two screws at the front edge near the door hinge
- Remove the front panel – Typically held by four bolts or clips depending on model series

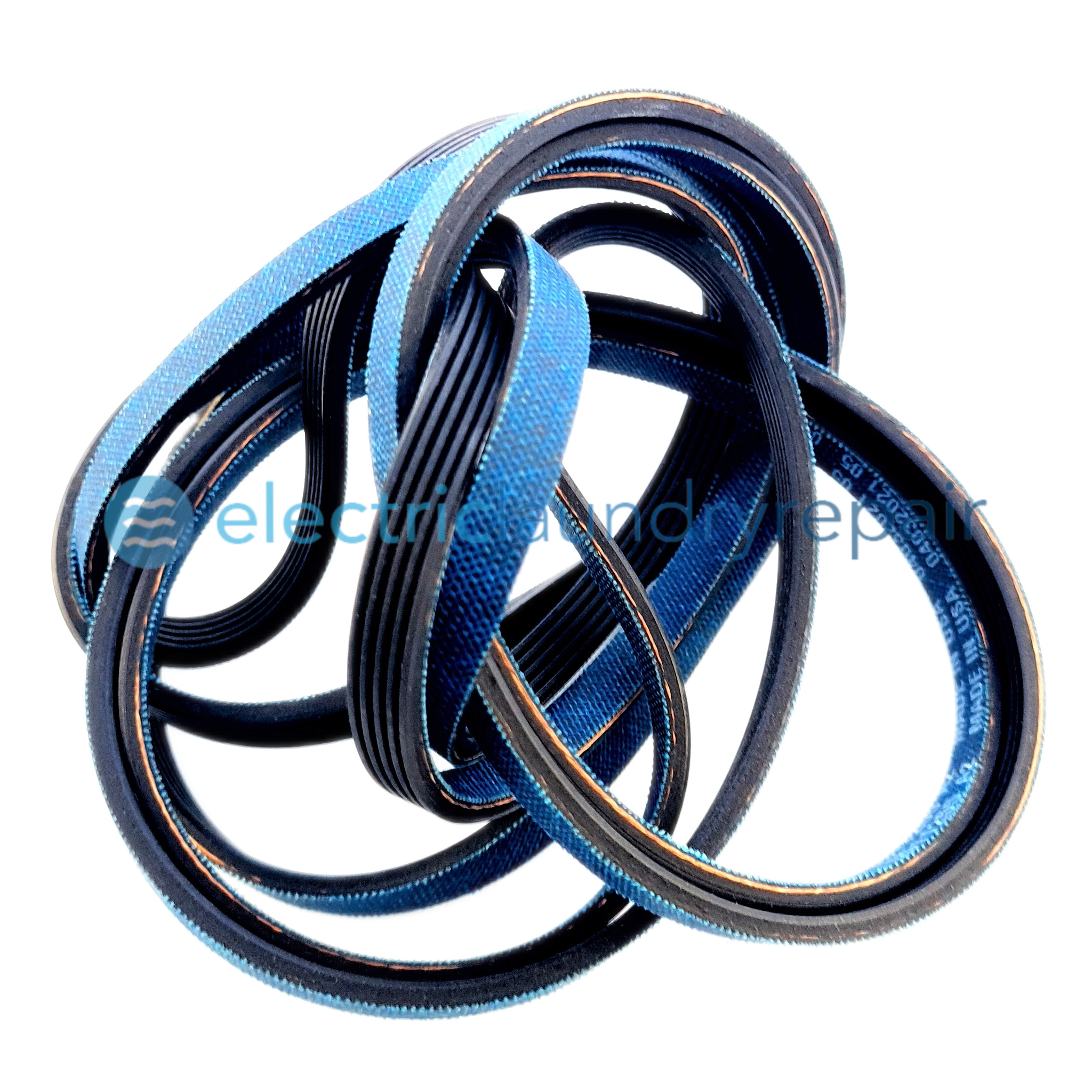

Original equipment drive belt used in many Unimac dryer models
Image source: www.amazon.com
Removing the Old Belt
- Mark belt routing – Take photos before disassembling so you know the correct path later
- Locate the idler pulley – This small wheel maintains constant tension on the belt
- Release tension carefully – Push the idler arm toward the motor to slacken the belt
- Slide belt off pulleys – Work slowly to avoid dropping pieces inside the cabinet
- Extract through the drum opening – Most belts exit through the rear bulkhead area
Installing the New Belt
- Route according to photos – Thread the new belt around the motor pulley first
- Loop around drum circumference – Grooved side should contact the drum surface
- Engage idler pulley last – This maintains proper tension automatically
- Verify alignment visually – Belt should sit flat and centered on all pulleys
- Manually rotate drum – Confirm smooth movement without binding or noise
Belt routing diagram showing correct path around motor and idler pulley
Image source: electriclaundryrepair.co.nz
Testing and Calibration Verification
Initial Spin Test
With everything reassembled:
- Run fingers along entire belt length – Feel for twists, kinks, or foreign objects caught underneath
- Rotate drum manually several times – Shouldn’t bind or require excessive force
- Listen for scraping or rubbing sounds – Indicates improper alignment somewhere in system
- Check belt tracking – Should remain centered on pulleys throughout rotation
First Operational Test Cycle
Plug in the dryer and run a short air-fluff cycle (no heat):
- Monitor closely for unusual vibrations or noise
- Feel for excessive heat buildup near motor housing
- Watch belt movement through inspection port if available
- Stop immediately if anything seems off – correct issues before continuing

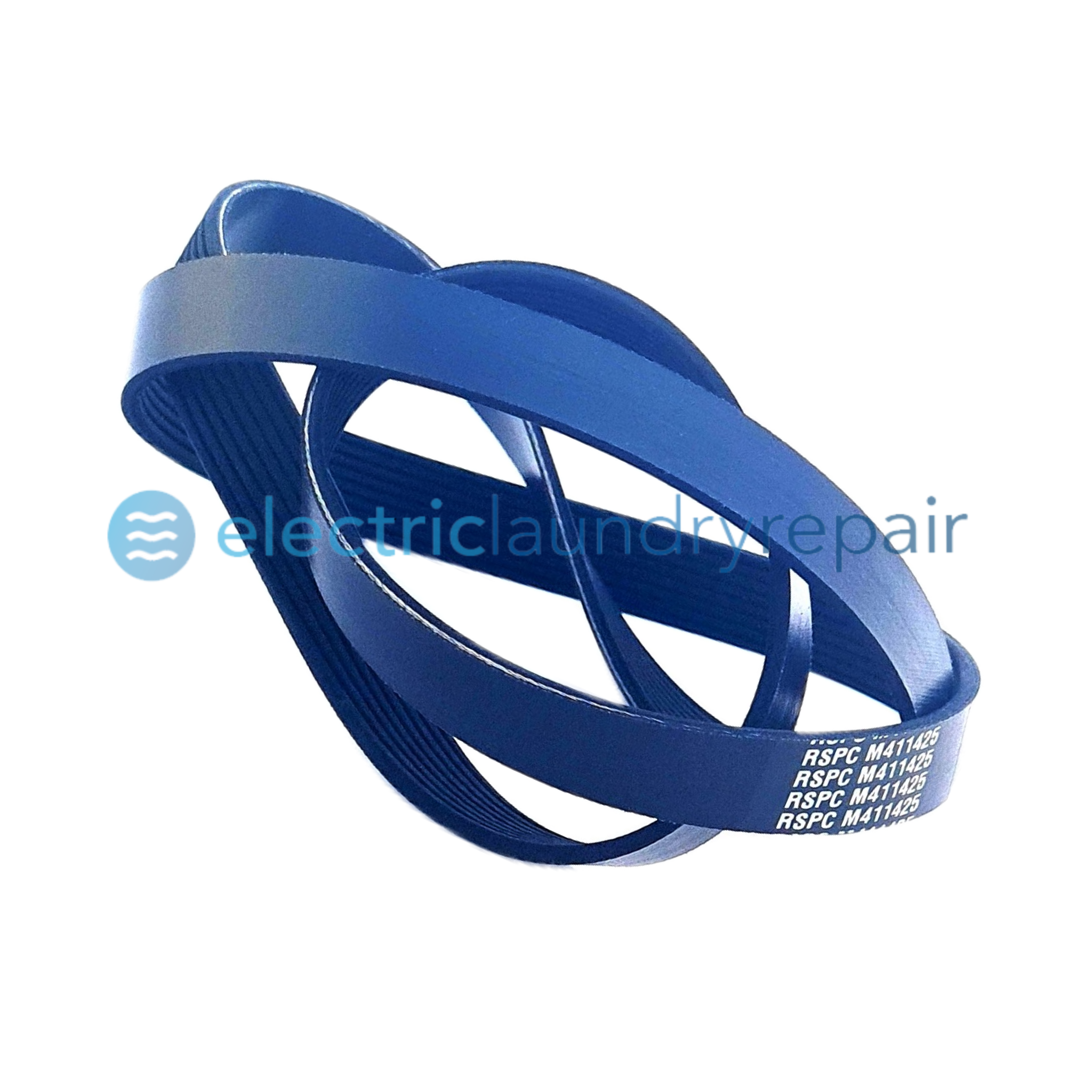

Close-up view showing micro-tooth profile on newer Unimac belts
Image source: electriclaundryrepair.co.nz
Common Mistakes and How to Avoid Them
Misaligned Installation Errors
The most frequent rookie mistake involves incorrect belt orientation. Always double-check that:
- Grooves face inward toward drum contact surface
- No portion of the belt rides on top of another section
- Idler pulley sits firmly against the tension side of the belt
- All pulleys spin freely with minimal axial play
Torque Specifications You Should Know
Over-tightening mounting bolts strips threads and warps components over time. General guidelines for standard Unimac models:
| Component | Recommended Torque |
|---|---|
| Motor mounting bolts | 8–10 ft-lbs |
| Drum support brackets | 15–18 ft-lbs |
| Idler arm pivot bolt | Hand-tight plus ¼ turn |
| Access panel screws | Snug only – no additional torque |
For precise torque values applicable to your specific model year, consult Unimac’s service manual documentation rather than relying solely on generic advice found online. For more on this, see our guide on lg dryer d80 code but no blockage.
Preventing Future Belt Failures
Regular maintenance reduces unexpected breakdowns significantly. Implement these preventive measures:
Monthly Inspection Routine
- Visually examine belt condition during routine filter cleaning
- Check for surface cracking, glazing, or fraying edges
- Verify idler pulley spins smoothly without wobble
- Listen for early squeaks indicating increased friction
Annual Deep Maintenance Tasks
Professional technicians recommend annual deep servicing including:
- Complete belt tension calibration using deflection gauge
- Replacement of worn drum rollers and bearing assemblies
- Cleaning accumulated lint from blower housing and exhaust housing
- Lubrication of motor bearings per manufacturer specifications
Those performing self-repair diagnostics benefit from understanding broader appliance health beyond just belt systems.
When Professional Service Makes Sense
While experienced DIYers can handle most belt replacements successfully, certain situations warrant calling certified professionals:
Warranty Considerations
Many newer Unimac units carry extended warranties covering drivetrain components. Opening cabinets or modifying factory-installed hardware may void coverage unless performed by authorized service agents trained specifically on commercial-grade laundry equipment.
Complex Diagnostic Scenarios
Sometimes symptoms resembling simple belt failure actually point to deeper electrical faults within the control board or motor drive circuits. Technicians armed with multimeters and oscilloscopes detect subtle anomalies invisible to casual observers.
Commercial operators managing multiple units benefit from establishing relationships with local laundry equipment specialists capable of bulk maintenance scheduling and priority response services.
Frequently Asked Questions About Unimac Belt Replacement
Can I Use Generic Aftermarket Belts?
Yes, but results depend heavily on sourcing quality suppliers. Premium brands like Gates or Continental often exceed OEM durability standards, whereas cheap imports frequently fail prematurely due to inferior rubber compounds and inadequate tensile cord construction.
How Often Should I Replace My Dryer Belt?
Under normal residential usage patterns, expect 3–7 years of service life. Heavy commercial operation accelerates wear, necessitating inspections every 6 months and proactive replacement every 12–18 months regardless of apparent condition.
What Causes Premature Belt Wear?
Primary culprits include:
- Overloading machines beyond rated capacity limits
- Operating with restricted airflow reducing cooling efficiency
- Neglecting periodic cleaning of internal components
- Allowing foreign objects to accumulate beneath drum assembly
Addressing root causes prevents recurring premature failures long after installing replacement belts.
Maximizing Investment Through Proper Care Practices
A properly maintained Unimac dryer delivers reliable performance for decades. Key success factors include prompt attention to developing problems, adherence to scheduled preventive maintenance protocols, and willingness to invest in quality replacement components rather than chasing cheapest available alternatives.
Remember that saving money upfront on inferior parts typically costs far more in repeated labor charges and lost productivity later. Whether tackling repairs yourself or hiring professionals, staying informed about your equipment’s needs pays dividends in consistent uptime and reduced total cost of ownership over time.
Your Unimac dryer represents significant investment in business productivity – treat it accordingly through disciplined maintenance practices ensuring optimal return on that expenditure year after year.
This updated guide reflects current best practices as of 2026, incorporating feedback from field technicians across North America specializing in commercial laundry equipment service. Following these recommendations consistently minimizes unexpected downtime while extending useful service life of critical drivetrain components.
