To remove a relay contactor in an HVAC system, first, turn off the power supply. Then, disconnect the wiring and remove the mounting screws.
Removing a relay contactor from your HVAC system can be a straightforward task if you follow the proper steps. Relay contactors play a crucial role in the efficient operation of HVAC systems, controlling the flow of electricity to various components.
Over time, these contactors may wear out or malfunction, necessitating their replacement. It is essential to handle this process with care to avoid electrical hazards and ensure the longevity of your HVAC system. By taking the right precautions and following a systematic approach, you can safely and efficiently replace a faulty relay contactor.
Safety Precautions
Removing a relay contactor from an HVAC system requires careful attention. Safety should always come first. Follow these safety steps to ensure a secure process.
Turn Off Power
Before starting, turn off the power. This prevents electrical shocks. Locate the main power switch. Turn it off completely.
- Find the circuit breaker.
- Switch it to the “off” position.
- Double-check to ensure no power is flowing.
Use a voltage tester to confirm the power is off. Safety is crucial. Never skip this step.
Wear Protective Gear
Always wear protective gear. This includes gloves and safety goggles. Protect your eyes and hands from potential hazards.
| Protective Gear | Purpose |
|---|---|
| Gloves | Protects hands from electrical shocks and sharp objects. |
| Safety Goggles | Prevents debris from entering your eyes. |
Ensure the gear fits well. It should be comfortable. Never compromise on safety equipment.
Tools Needed
Removing a relay contactor from an HVAC system requires specific tools. Using the right tools ensures safety and efficiency. Below is a list of essential tools needed for this task.
Basic Hand Tools
Basic hand tools are crucial for removing a relay contactor. These tools include:
- Screwdrivers: Flathead and Phillips for removing screws.
- Pliers: Needle-nose pliers for gripping small parts.
- Wrenches: Adjustable wrench for loosening bolts.
- Wire Cutters: For cutting wires safely.
Multimeter
A multimeter is essential for electrical work. It helps measure voltage, current, and resistance. Use it to ensure the HVAC system is powered off. It also checks the relay contactor’s condition.
Follow these steps to use a multimeter:
- Set the multimeter to the correct measurement setting.
- Touch the probes to the relay contactor terminals.
- Read the display to check for continuity or voltage.
Using a multimeter ensures safe and accurate work.
Identifying The Relay Contactor
Before you can remove the relay contactor in your HVAC system, you need to identify it correctly. A relay contactor is a crucial component that controls the flow of electricity to various parts of the system. Identifying this part is the first step to ensure a successful removal and replacement process.
Locate The Unit
First, locate the HVAC unit. This unit is usually found outside your home or in a utility room. Look for a metal box connected to the HVAC system. This box houses the relay contactor.

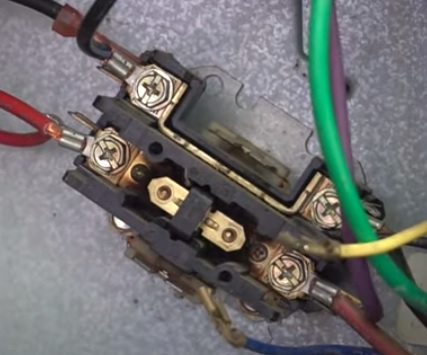

Open the box carefully using a screwdriver. Inside, you will see several components, including the relay contactor. The relay contactor often looks like a rectangular or square block with multiple wires connected to it.
Understand The Wiring
Next, understand the wiring connected to the relay contactor. HVAC systems use complex wiring to ensure proper function. Take a clear picture of the wiring setup before proceeding. This step helps you reconnect everything correctly later.
Label each wire using colored tape or markers. This practice helps you keep track of where each wire goes. The relay contactor usually has labels such as “L1,” “L2,” “T1,” and “T2.” These labels indicate the terminals where the wires connect.
Here’s a simple table to help you understand the wiring labels:
| Label | Description |
|---|---|
| L1 | Line 1 – Incoming power |
| L2 | Line 2 – Incoming power |
| T1 | Terminal 1 – Outgoing power |
| T2 | Terminal 2 – Outgoing power |
By following these steps, you can easily identify the relay contactor and its wiring. This identification process is essential for the safe removal of the component.
Credit: terrylove.com
Accessing The Relay Contactor
Accessing the relay contactor in an HVAC system is a crucial step. Proper handling ensures safety and efficiency. Follow these steps to access the relay contactor easily.
Remove Cover Panel
First, locate the HVAC unit’s cover panel. This panel protects the internal components. Use a screwdriver to remove the screws holding the cover. Keep the screws in a safe place.
Carefully remove the cover panel. Place it aside to avoid damage. Now, you have access to the internal components, including the relay contactor.
Check For Voltage
Before touching any components, check for voltage. Use a multimeter to ensure the system is powered off. Safety is the top priority when working with electrical systems.
Set the multimeter to the correct voltage setting. Place the probes on the relay contactor terminals. Ensure there is no voltage present. If voltage is detected, stop and disconnect the power source.
Now, you can safely proceed to remove the relay contactor.
Disconnecting Electrical Connections
Removing a relay contactor from an HVAC system can be tricky. One crucial step is disconnecting electrical connections. Follow the steps carefully to ensure safety and efficiency.
Label Wires
Before you disconnect any wires, it’s important to label each wire. Use masking tape and a marker for this task.
- Write the current position of each wire on the tape.
- Stick the labeled tape on each wire.
- This helps you reconnect wires correctly later.
Use Correct Tools
Using the right tools is essential for safety and efficiency. Always use insulated tools to prevent electrical shocks.
| Tool | Use |
|---|---|
| Insulated Screwdriver | Loosen screws holding wires |
| Wire Cutters | Cut wires if necessary |
| Multimeter | Check for live wires |
After gathering the right tools, proceed to disconnect the wires. Follow these steps:
- Turn off the power supply.
- Use the insulated screwdriver to loosen screws.
- Disconnect the labeled wires carefully.
- Double-check that all wires are disconnected.
By labeling wires and using the correct tools, you can safely disconnect the electrical connections. This ensures a smooth relay contactor removal process.
Credit: www.youtube.com
Removing The Relay Contactor
Removing a relay contactor from your HVAC system may seem tricky. Follow these steps to ensure a safe and efficient process. Make sure to turn off the power before you begin. This will protect you from electric shock and damage to the system.
Unscrew The Mounting Bolts
First, locate the mounting bolts that secure the relay contactor. They are usually found at the base of the unit. Use a screwdriver to unscrew the bolts. Keep the screws in a safe place. You will need them later to install the new contactor.
Carefully Remove The Unit
After you have removed the screws, you can now lift the unit. Hold the unit firmly and gently pull it away from the mounting surface. Avoid using too much force to prevent damaging the wires.
If the unit is stuck, wiggle it slightly to loosen it. Once the unit is free, place it on a flat surface for inspection. Check for any signs of wear or damage.
These steps will help you remove the relay contactor safely. Always remember to handle all components with care.
Installing The New Relay Contactor
Once you have removed the old relay contactor, it’s time to install the new one. This process involves positioning the new unit correctly and reconnecting the wires. Follow these steps carefully to ensure a safe and effective installation.
Position The New Unit
First, ensure that the new relay contactor matches the specifications of the old unit. This includes checking the voltage and amperage ratings.
Place the new relay contactor in the same position as the old one. Align it so the mounting holes match up.
Secure the relay contactor using screws. Make sure it is firmly in place to avoid any movement.
Reconnect Wires
Now, it’s time to reconnect the wires. Follow the wiring diagram to ensure correct connections.
Start with the main power wires. Connect each wire to the corresponding terminal on the relay contactor.
- Red wire: Connect to terminal A.
- Black wire: Connect to terminal B.
- Green wire: Connect to the ground terminal.
Next, connect the control wires. These wires usually include a common wire and a control signal wire.
Double-check each connection to ensure they are tight and secure. Loose connections can cause electrical issues.
Once all wires are reconnected, double-check the entire setup. Ensure everything is in its proper place.
| Wire Color | Connection Point |
|---|---|
| Red | Terminal A |
| Black | Terminal B |
| Green | Ground Terminal |
Your new relay contactor is now installed. Turn on the power to test the system. If everything works, you have successfully installed a new relay contactor.
Testing The Installation
After replacing your HVAC relay contactor, it’s crucial to test the installation. This ensures everything works correctly and prevents future issues. Below are the steps to follow:
Restore Power
First, restore power to your HVAC system. Ensure all breakers and switches are back in the ‘On’ position. This step is vital for checking your work.
Use a voltage tester to confirm that power is flowing. This helps to verify that the electrical connections are secure. Double-check all wiring to avoid any mishaps.
Check For Proper Operation
Next, check if the HVAC system operates correctly. Set your thermostat to a desired temperature. Listen for the system to kick in.
- Observe if the fan starts running.
- Check if the compressor activates.
- Feel for cool air from the vents.
If everything runs smoothly, your installation is successful. If not, revisit your steps and troubleshoot any issues.
Final Steps
Welcome to the final steps of removing a relay contactor HVAC. This part ensures your HVAC system is safe and ready to operate. Follow these steps for a secure and efficient finish.
Reattach Cover Panel
First, locate the cover panel. It should be near the relay contactor. Carefully align the cover with its slots. Ensure it fits snugly.
Use screws to secure the cover panel. Tighten them using a screwdriver. Ensure all screws are tight but not over-torqued. This prevents damage to the cover panel.
Check that the cover panel is firmly attached. It should not wobble or move. A secure cover protects the internal components.
Perform Safety Check
Now, perform a safety check. Verify that all connections are secure. Loose wires can cause malfunctions.
Inspect the area for any leftover tools. Remove any tools or debris. A clean workspace prevents accidents.
Switch the power back on. Observe the HVAC system for a few minutes. Ensure it operates smoothly and without unusual noises.
If everything looks good, your job is complete. You’ve successfully removed and replaced the relay contactor HVAC.
| Tool | Purpose |
|---|---|
| Screwdriver | Tighten screws on cover panel |
| Multimeter | Check electrical connections |
| Flashlight | Inspect for debris |
- Reattach cover panel
- Perform safety check
- Switch power on
- Observe for smooth operation
Credit: www.quora.com
Conclusion
Removing a relay contactor in an HVAC system is a straightforward process. Follow the steps carefully and ensure safety. Regular maintenance can prevent future issues. With the right tools and knowledge, you can handle this task efficiently. Always consult your HVAC manual or a professional if unsure.
