To remove the HVAC blower motor wheel, disconnect the power and remove the retaining screws. Install the new wheel by reversing the process.
The HVAC blower motor wheel is a crucial component that ensures proper airflow in your vehicle’s heating and cooling system. Over time, it can wear out or get damaged, leading to reduced efficiency or complete failure. Replacing the blower motor wheel is a manageable DIY task that can save you money and restore your HVAC system’s performance.
By following a few straightforward steps, you can remove the old blower motor wheel and install a new one, ensuring your vehicle’s climate control system operates smoothly. This guide will help you tackle the task effectively and efficiently.

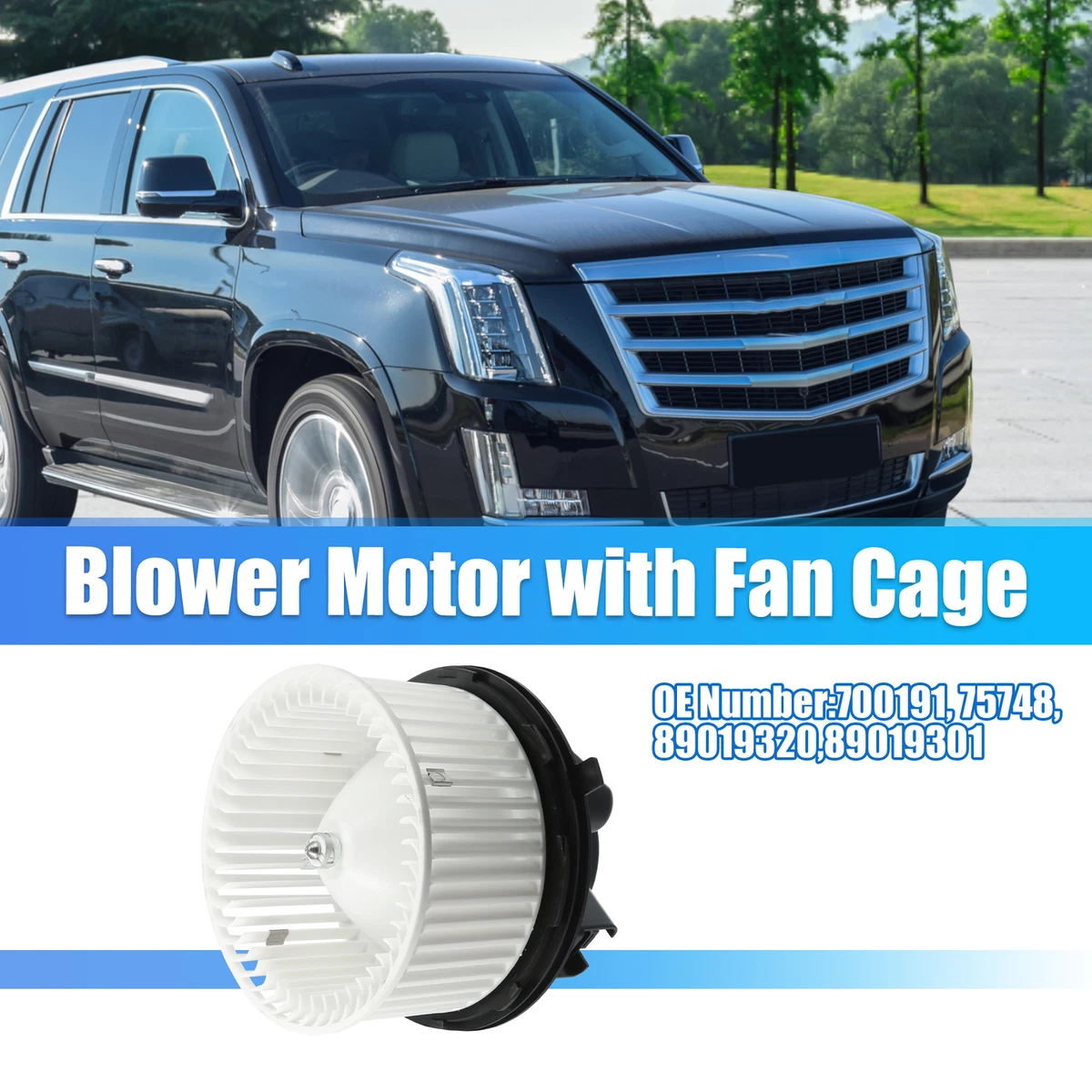

Credit: www.amazon.com
Introduction To Auto Hvac Systems
Auto HVAC systems are crucial for vehicle comfort. They control heating, ventilation, and air conditioning. This system ensures you stay cool in summer and warm in winter. A key component is the blower motor wheel.
The Role Of The Blower Motor Wheel
The blower motor wheel pushes air through the HVAC system. It distributes air to the car’s interior. This air can be heated or cooled. The wheel works with the motor to move air at different speeds. It ensures you get the right temperature quickly.
Symptoms Of A Faulty Blower Motor Wheel
A bad blower motor wheel shows clear signs. Look for these symptoms:
- Weak airflow from vents
- Strange noises from the HVAC system
- Airflow only works at certain speeds
- No air coming from vents
If you notice these issues, the blower motor wheel may need replacing. Addressing this problem ensures your car’s HVAC system works well.
Safety First: Preparing For The Task
Before you start to remove and install the auto HVAC blower motor wheel, focus on safety. This ensures you avoid injuries and damage to your car. Follow these steps for a safe and smooth process.
Tools And Materials Needed
Gather all the tools and materials before you start. This helps you work efficiently and safely.
| Tools | Materials |
|---|---|
| Socket Set | New Blower Motor Wheel |
| Screwdrivers | Replacement Screws |
| Wrench | Cleaning Cloths |
| Safety Gloves | Lubricant |
| Safety Glasses |
Disconnecting The Battery
Disconnecting the battery is crucial for your safety. Follow these simple steps:
- Locate the car battery under the hood.
- Wear safety gloves and glasses.
- Use a wrench to loosen the negative terminal.
- Disconnect the negative cable first.
- Repeat for the positive terminal.
- Ensure both cables are secured away from the battery.
Disconnecting the battery prevents electric shocks and accidental shorts.
Accessing The Blower Motor Wheel
Before you can remove and install the HVAC blower motor wheel, you need to access it. This involves locating the blower motor and potentially removing some dashboard components. Follow these steps for a smooth process.
Locating The Blower Motor
The blower motor is usually under the dashboard. It might be on the passenger side. Look for a small motor attached to a plastic housing.
- Check your vehicle’s manual for precise location.
- Make sure to disconnect the car battery.
Removing Dashboard Components If Necessary
Sometimes, you need to remove parts of the dashboard. This makes the blower motor more accessible. Here’s how to do it:
- Use a screwdriver to remove screws holding the dashboard.
- Carefully detach any clips securing the dashboard.
- Move the dashboard aside without disconnecting any wires.
Now, you can clearly see the blower motor. You are ready to proceed with removing it.
Credit: www.ebay.com
Removing The Blower Motor Wheel
Removing the blower motor wheel from your vehicle is a simple task. This guide will help you remove it safely and efficiently. Follow these steps to ensure a smooth removal process.
Detaching The Blower Motor
First, locate the blower motor under the dashboard. Disconnect the wiring harness connected to the motor. Use a screwdriver to remove the screws holding the motor in place.
Next, gently pull the motor out from its housing. Be careful not to damage any surrounding components. Place the motor on a clean surface. This will help you keep track of all parts.
Carefully Extracting The Wheel
Now, you need to remove the blower motor wheel from the motor. Use a wrench to loosen the nut securing the wheel. Turn the nut counterclockwise until it comes off completely.
Gently pull the wheel off the motor shaft. If it seems stuck, use a small amount of lubricant. This will help loosen the wheel.
Inspect the wheel for any damage or wear. If needed, replace it with a new one. Keep the old wheel as a reference for the new one.
| Tools Needed | Description |
|---|---|
| Screwdriver | To remove screws from the blower motor |
| Wrench | To loosen the nut securing the wheel |
| Lubricant | To help loosen a stuck wheel |
Follow these steps carefully to ensure a successful removal. This process will make the installation easier and quicker.
Inspecting The Blower Motor And Wheel
Before you remove or install an auto HVAC blower motor wheel, inspect it. This will help you decide if the parts need cleaning or replacement. Let’s break down the inspection process into two main steps.
Identifying Damage Or Wear
First, check the blower motor and wheel for visible signs of damage. Look for cracks, breaks, or any form of physical wear. Use a flashlight to inspect hard-to-see areas. Rotate the wheel by hand to ensure it moves smoothly.
| Component | Signs of Damage |
|---|---|
| Blower Motor | Burn marks, broken wires, unusual noises |
| Blower Wheel | Cracks, bends, loose fit |
Deciding To Clean Or Replace
Once you have identified any damage or wear, you need to decide the next steps. If the parts are only dirty, consider cleaning them. Use a soft brush and mild detergent to remove dust and grime. Ensure all parts are dry before reassembly.
- Check for physical damage
- Clean the parts if they are only dirty
- If damaged, plan for replacement
If the blower motor or wheel is damaged, replacing them is the best option. A damaged component can affect the HVAC system’s performance. Make sure to purchase parts that are compatible with your vehicle’s make and model.
Credit: www.amazon.com
Installing The New Blower Motor Wheel
Replacing the HVAC blower motor wheel in your vehicle may seem tricky. This guide will make it simple. Follow these steps for a smooth installation.
Securing The Wheel On The Motor
First, ensure the new blower motor wheel fits the motor shaft. Align the wheel correctly to prevent any imbalance. Use a torque wrench to secure the wheel on the motor. Tighten the screws evenly to avoid any wobbling. Check if the wheel spins freely without obstruction.
| Step | Action |
|---|---|
| 1 | Align the wheel with the motor shaft |
| 2 | Use a torque wrench to secure the wheel |
| 3 | Tighten screws evenly |
| 4 | Ensure the wheel spins freely |
Reattaching The Blower Motor
Once the wheel is secure, place the blower motor back in its housing. Align the motor mounts with the holes. Use mounting bolts to secure the motor. Reconnect any electrical connectors to the motor. Ensure all connections are tight and secure.
- Place the blower motor back in its housing
- Align the motor mounts with the holes
- Secure the motor with mounting bolts
- Reconnect electrical connectors
- Verify all connections are tight
After securing the motor, test the blower to ensure proper function. Turn on the HVAC system and listen for any unusual noises. If everything sounds smooth, you have successfully installed the new blower motor wheel.
Reassembling The Dashboard Components
After replacing the auto HVAC blower motor wheel, it’s time to reassemble the dashboard components. This process requires patience and attention to detail. Follow these steps to ensure everything fits back perfectly.
Ensuring All Parts Are Secure
First, gather all the dashboard components you removed. Make sure none are missing or damaged. It’s important that every part goes back in its original place.
Begin with the larger parts and work your way to the smaller ones. Use a torque wrench to tighten screws and bolts. This ensures they are secure and won’t come loose.
Check each piece for stability. Give each part a gentle push to confirm it’s firmly attached. If anything feels loose, tighten it immediately.
Reconnecting Electrical Components
Next, focus on reconnecting the electrical components. Locate the wires you disconnected during removal.
Match each wire to its corresponding connector. Most connectors are designed to fit only one way. This helps prevent mistakes.
Once connected, gently tug each wire to ensure it’s secure. Loose connections can cause electrical issues later.
Check that all electrical components are functioning. Turn on the vehicle and test the HVAC system. Make sure the blower motor wheel is working correctly.
Finally, replace any protective covers or panels you removed. Ensure they are securely fastened.
| Step | Action | Tool Needed |
|---|---|---|
| 1 | Gather all components | None |
| 2 | Secure larger parts first | Torque wrench |
| 3 | Reconnect wires | None |
| 4 | Test electrical components | None |
| 5 | Replace protective covers | None |
Final Steps And Testing
After replacing the HVAC blower motor wheel, the final steps are crucial. These steps ensure everything works correctly. Follow these simple steps to finish the job.
Reconnecting The Battery
Reconnecting the battery is the first task. Locate the battery in your car. Usually, it is under the hood.
- Ensure the ignition is turned off.
- Reconnect the negative terminal first.
- Tighten the clamp securely.
- Reconnect the positive terminal.
- Check that both terminals are tight.
Important: Make sure there is no corrosion on the terminals.
Testing The Hvac System
Testing the HVAC system ensures your work is successful. Follow these steps to test it:
- Start the car engine.
- Turn on the HVAC system to the highest setting.
- Listen for unusual noises from the blower motor.
- Feel for airflow from all vents.
- Check if the air is heating or cooling as expected.
If you encounter any issues, inspect the connections. Ensure everything is installed correctly.
| Step | Action |
|---|---|
| 1 | Reconnect the battery terminals. |
| 2 | Start the car engine. |
| 3 | Turn on the HVAC system. |
| 4 | Check for airflow and noises. |
| 5 | Ensure proper heating or cooling. |
By following these steps, your HVAC system should work perfectly. Enjoy a comfortable ride with a well-functioning HVAC system.
Conclusion
Replacing your auto HVAC blower motor wheel can be straightforward with the right steps. Follow our guide for a smooth process. Regular maintenance ensures optimal performance and comfort. Save time and money by doing it yourself. Keep your vehicle’s HVAC system in top shape with these simple tips.
