What are Swaging Tool Used for in Hvac

Swaging tools are used in HVAC to expand the ends of copper or aluminum tubing. This allows for a tight, secure fit between two pipes.

Swaging tools are essential in the HVAC industry. They help create precise and secure connections in copper and aluminum tubing. By expanding the tubing ends, swaging tools ensure a tight fit, reducing the risk of leaks. This tool is crucial for maintaining system efficiency and safety.

HVAC professionals rely on swaging tools for reliable and durable pipe connections. The tool’s design allows for easy and quick operation, saving time on installations and repairs. Swaging tools come in various sizes to accommodate different tubing diameters. Proper use of these tools enhances the overall performance of HVAC systems.

What are Swaging Tool Used for in Hvac

Credit: www.hilmor.com

Introduction To Swaging Tools In Hvac

Swaging tools are essential in the HVAC industry. They help technicians create precise pipe fittings. This ensures efficient and effective HVAC systems.

The Basics Of Swaging In Hvac

Swaging is the process of expanding the end of a pipe. This allows another pipe to fit inside it. The swaging tool makes this possible. It ensures a tight and secure connection. Below is a simple table showing the swaging process:

Step Description
1 Insert the pipe into the swaging tool
2 Expand the pipe end using the tool
3 Fit the expanded end into another pipe
4 Ensure a tight connection

Importance Of Precision In Pipe Fitting

Precision is crucial in HVAC systems. A well-fitted pipe prevents leaks. This ensures system efficiency. Below are key reasons why precision matters:

  • Prevents air and fluid leaks
  • Ensures optimal system performance
  • Reduces energy consumption
  • Increases system longevity

Using a swaging tool ensures each pipe fits perfectly. This precision leads to better HVAC system performance.

Types Of Swaging Tools

Swaging tools are essential in HVAC systems. They help in forming connections in tubing. There are different types of swaging tools, each suited for specific tasks. Let’s explore the various types of swaging tools available.

Manual Swaging Tools

Manual swaging tools are simple and effective. They require no power source. These tools are perfect for small jobs and repairs.

  • Lightweight and portable
  • Easy to use
  • Cost-effective

Manual swaging tools are ideal for fieldwork. They work well in tight spaces. They provide precise swages every time.

Hydraulic Swaging Tools

Hydraulic swaging tools offer power and precision. They use hydraulic pressure to create swages. These tools are perfect for larger jobs.

Feature Benefit
Powerful Handles thick tubing easily
Efficient Reduces manual effort
Durable Long-lasting tool life

Hydraulic swaging tools are best for industrial applications. They ensure consistent results with minimal effort.

Flaring And Swaging Tool Kits

Flaring and swaging tool kits combine both functions. They are versatile and convenient. These kits are perfect for comprehensive HVAC tasks.

  1. Includes multiple tool heads
  2. Comes with carrying case
  3. Great for professionals

Flaring and swaging tool kits offer all-in-one solutions. They save time and space. These kits are essential for any HVAC technician.

The Swaging Process

The swaging process is crucial in HVAC work. It involves reshaping pipes. Technicians use swaging tools to expand the end of a tube. This makes it possible to fit the tube into another. The process ensures a tight and secure connection. This is vital for efficient HVAC systems.

Steps In The Swaging Procedure

  1. Prepare the Tube: Cut the tube to the desired length. Ensure the cut is clean and straight.
  2. Deburr the Edges: Remove any sharp edges or burrs. Use a deburring tool to smooth the inside and outside of the tube.
  3. Mark the Tube: Mark the tube to the depth needed for swaging. This helps ensure consistency.
  4. Insert the Swaging Tool: Place the swaging tool into the tube. Align it with the marked depth.
  5. Expand the Tube: Use the tool to expand the tube. Rotate or press the tool according to the manufacturer’s instructions.
  6. Inspect the Swaged End: Check the expanded end for uniformity. Ensure it fits snugly into the connecting piece.

Safety Precautions During Swaging

  • Wear Safety Gear: Always wear safety glasses and gloves. Protect your eyes and hands from flying debris.
  • Secure the Tube: Ensure the tube is clamped securely. This prevents it from moving during the process.
  • Use the Right Tool: Choose the appropriate swaging tool for the tube size. Using the wrong tool can damage the tube or cause injury.
  • Follow Instructions: Adhere to the tool manufacturer’s guidelines. Proper usage ensures safety and effectiveness.
  • Inspect Tools Regularly: Check tools for wear and tear. Replace damaged tools to prevent accidents.

Applications Of Swaging In Hvac

Swaging tools are essential in the HVAC industry. They help create strong, leak-proof connections. These tools allow for precise and efficient pipe work. Let’s explore the main applications of swaging in HVAC.

Joining Pipes Without Fittings

One primary application is joining pipes without fittings. Swaging tools expand the end of one pipe. This expanded end fits over another pipe. This creates a secure connection without extra fittings.

This method saves time and money. It reduces the number of fittings needed. Fewer fittings mean fewer potential leaks. This makes the HVAC system more reliable and efficient.

Repairing Refrigerant Lines

Swaging tools are also useful in repairing refrigerant lines. These tools can fix damaged or leaking lines. The swaging process creates a tight seal. This ensures the refrigerant does not escape.

Repairing refrigerant lines with swaging tools is quick and effective. It minimizes downtime and keeps the system running smoothly. This is crucial for maintaining optimal HVAC performance.

Advantages Of Swaging

Swaging tools are essential in HVAC for joining pipes. These tools offer several benefits, making them a popular choice among technicians.

Cost-effective Connections

Swaging tools provide a cost-effective solution for connecting pipes. They eliminate the need for additional fittings, which can be expensive. This reduces the overall cost of the project.

Using swaging tools can also save on labor costs. Technicians can make connections quickly and easily. This reduces the time spent on each job, leading to cost savings.

Swaging tools are durable and long-lasting. This means fewer replacements and repairs, further reducing costs.

Improved Flow Efficiency

Swaging tools help create smooth and efficient connections. This improves the flow of refrigerants and air through the pipes. Smooth connections reduce resistance and pressure drops.

Improved flow efficiency leads to better system performance. This means the HVAC system works more effectively, providing better results.

Efficient flow also reduces energy consumption. This can lead to lower energy bills and a more sustainable operation.

Swaging tools ensure tight and secure connections. This reduces the risk of leaks, which can affect flow efficiency.

Advantages Details
Cost-effective connections Reduces need for additional fittings, saves on labor costs, durable.
Improved flow efficiency Smooth connections, better system performance, reduces energy consumption.

In summary, swaging tools offer significant benefits for HVAC systems. They provide cost-effective connections and improve flow efficiency, making them invaluable in the industry.

Choosing The Right Swaging Tool

Choosing the right swaging tool is crucial in HVAC systems. The right tool ensures precise and efficient work. Here, we explore key considerations for selecting a swaging tool.

Size And Compatibility

Swaging tools come in various sizes. You must match the tool size with the tube size. Using an incorrect size can damage the tube. Always check the tool’s compatibility with your tubing.

Tube Size Swaging Tool Size
1/4 inch 1/4 inch
3/8 inch 3/8 inch
1/2 inch 1/2 inch

Material Considerations

Swaging tools are made from various materials. Common materials include steel and aluminum. Steel tools are durable and suitable for heavy-duty work. Aluminum tools are lightweight and easy to use.

  • Steel: Durable, heavy-duty, suitable for frequent use.
  • Aluminum: Lightweight, user-friendly, ideal for occasional work.

Choose the material based on your work frequency and tube material. For copper tubes, aluminum tools are often sufficient. For harder materials, steel tools are better.

Maintenance Of Swaging Tools

Proper maintenance of swaging tools is crucial for their longevity. Regular upkeep ensures these tools perform at their best. This section will cover two key aspects of maintenance: regular cleaning and inspection and proper storage practices.

Regular Cleaning And Inspection

Regular cleaning keeps your swaging tools in good condition. Dirty tools can cause damage to HVAC systems. Clean your tools after every use to remove debris and residue. Use a soft cloth to wipe down the tools. For stubborn dirt, use a mild detergent and water.

Inspection is equally important. Check your tools for wear and tear. Look for cracks, rust, or other damages. A damaged tool can lead to poor performance. Replace any damaged parts immediately.

Cleaning Steps Inspection Points
Wipe with a soft cloth Check for cracks
Use mild detergent for stubborn dirt Look for rust
Dry thoroughly Inspect for wear and tear

Proper Storage Practices

Store your swaging tools in a dry place. Moisture can cause rust. Use a toolbox or storage case to keep them safe. Organize your tools neatly to avoid damage. Do not stack heavy items on top of your tools.

Label your storage spaces for easy access. This helps in quickly finding the right tool. Keep your storage area clean and free from dust. Regularly check your storage conditions to prevent any damage.

  • Store in a dry place
  • Use a toolbox or storage case
  • Organize tools neatly
  • Label storage spaces
  • Keep storage area clean
  • Check storage conditions regularly
What are Swaging Tool Used for in Hvac

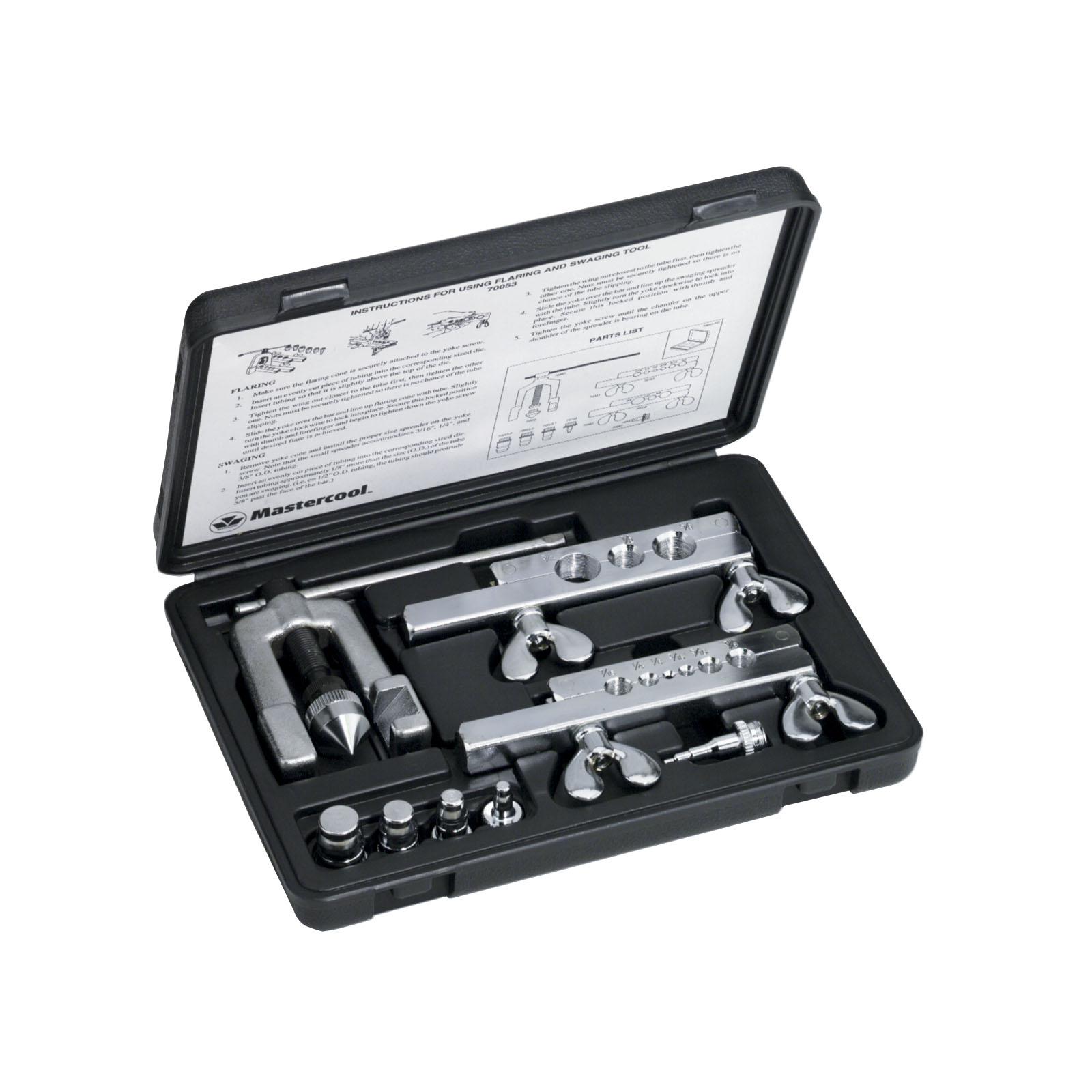

Credit: www.mastercool.com

Best Practices For Professional Hvac Technicians

Using swaging tools in HVAC requires precision and expertise. Following best practices ensures efficiency and safety.

Training And Skill Development

Hands-on training is crucial for mastering swaging tools. Technicians should attend workshops and training programs.

  • Enroll in certified HVAC courses.
  • Practice regularly with swaging tools.
  • Learn from experienced professionals.

Continuous skill development is essential. Stay committed to improving your techniques.

  1. Join HVAC forums and groups.
  2. Watch instructional videos.
  3. Read industry-related articles and books.

Staying Updated With Industry Standards

Following industry standards ensures the quality and safety of your work. Stay informed about the latest HVAC regulations.

Resource Benefits
Industry newsletters Receive updates on new standards
Professional organizations Access to exclusive resources and guidelines
Online courses Learn about the latest techniques and tools

Participating in continuous education helps. Regularly attend seminars and conferences.

  • Network with other professionals.
  • Gain insights into emerging trends.
  • Learn about new technologies in HVAC.
What are Swaging Tool Used for in Hvac

Credit: www.amazon.com

Conclusion

Swaging tools play a crucial role in HVAC systems, enhancing efficiency and performance. They ensure precise fittings, reducing leaks and energy loss. Mastering their use can lead to cost savings and system longevity. Investing time in learning swaging techniques can significantly improve HVAC installations and maintenance.
